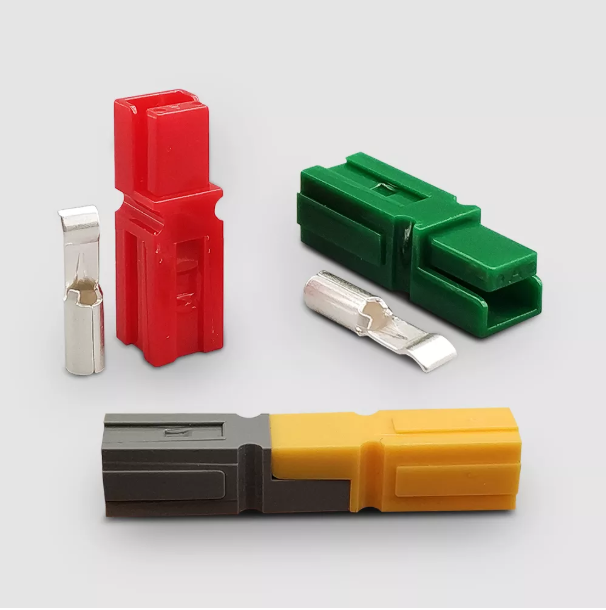

30A-600V 1pin power connector

Features:

●Flat wiping contact technology

Minimize contact resistance under high current, wiping action cleans contact surface during connection/disconnection.

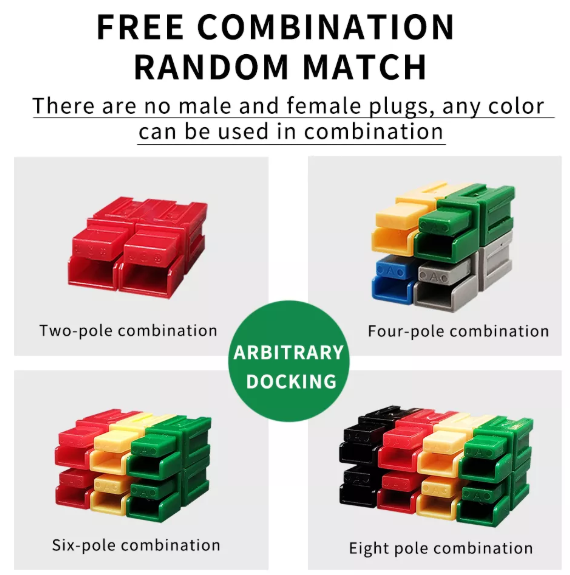

●Free combination

Single connection or multiple connections can be assembled, foolproof design can prevent mis-insertion.

●Color foolproof design

Recommend industry standard voltage is confirmed by color, avoid mating of two different voltage plastic shells.

Eliminate the possibility of misplugging the power supply and the socket.

Minimalcontact resistance at high current, wiping action cleans contact surface duringconnection/disconnection

●Colorful modular shell

Use eyecatching color coding to match the wire, and determine the voltage recommended by the industry standard according to the color.

●Interchangeable genderless design

Interchangeable genderless design makes assembly easier and reduces stock.

Applications:

This series of products are widely used in logistics communication, power-driven tools, UPS systems electric vehicles, medical equipment AC/DC power etc.

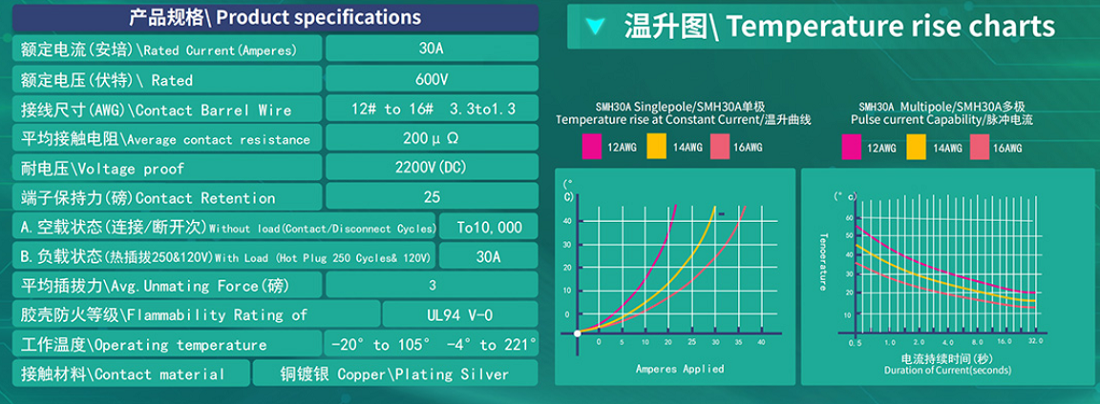

Specifications:

Thisseries ofproductsmeets strict uL. cuL certificatian,which can   beused safety in logistics communication.Power-driven tools.UPS systems Electric vehicles.medical equipment AC/DCpower etc.of   widelyindustry and the most area aroundworld.
