SY50A600V 2pin power connector
SY50A connector is widely used in lithium battery and electrical vehicle battery connection applications. It has blue/red/grey/yellow/black color optional, contacts options are 6AWG, 8AWG, 10/12AWG, different accessories are available.
Brand：SMH
Origin：CN(Origin)
Certification：CE RoHS UL cUL
Consult Now
QR code
FeaturesSpecification
Features:
●Flat wiping contact technology
Minimize contact resistance under high current, wiping action cleans contact surface during connection/disconnection.
●Color foolproof design
Recommended industry standard voltage is confirmed by color, avoid mating of two different voltage plastic shells.
Eliminate the possibility of misplugging the power supply and the socket.
●Interchangeable genderless design
Interchangeable genderless design makes assembly easier and reduces stock.
Applications:
This series of products are widely used in logistics communication, power-driven tools,
UPS systems electric vehicles, medical equipment AC/DC power etc.

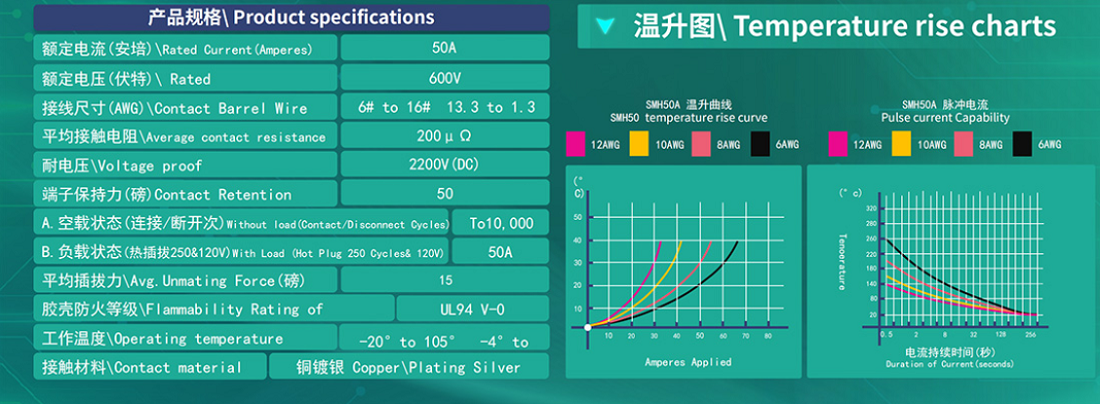

Specifications:
