Forklift charging connector

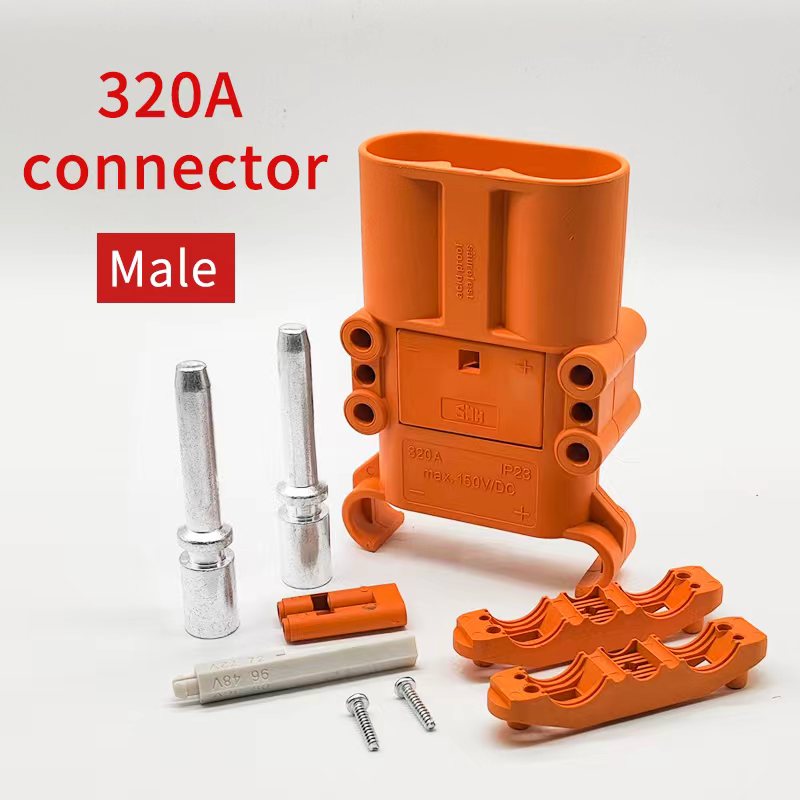

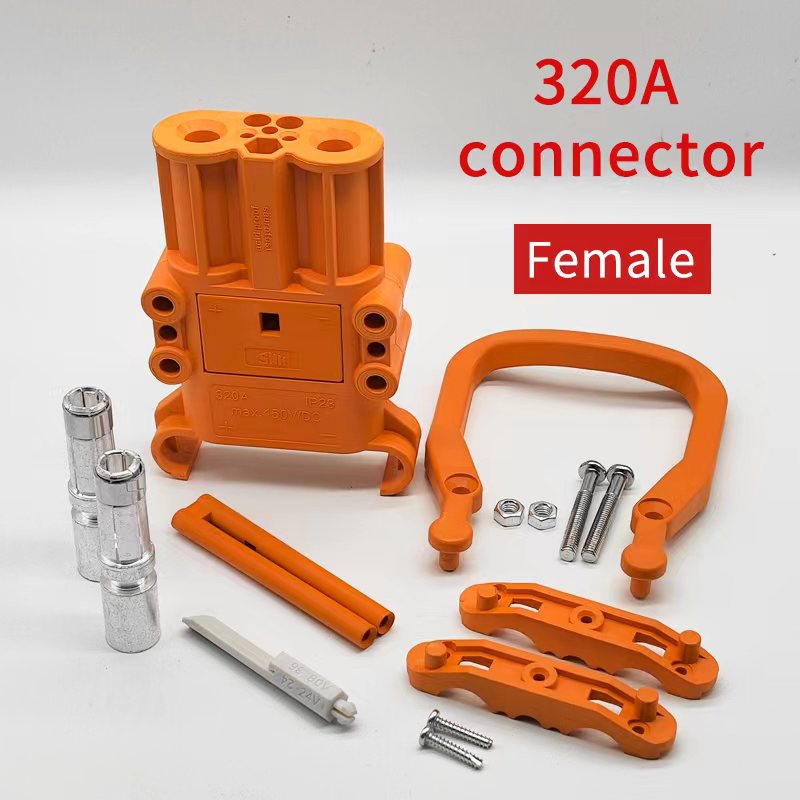

Forklift Battery Connector 80A/160A/320A

Features

●Pinhole contact technology

Small contact resistance under high current, wiping action cleans contact surface

during connection/disconnection.

●Modular shell

Operating voltage is recommended according to industry standard,

avoid mating of two different voltage coding plastic shell.

Eliminate the possibility of misplugging the power supply and the socket.

●Anti-gold finger design

It reduces the potential risks of circuits in life largely, effectively reduces

the occurrence of electric shock, and improve safety greatly.

Applications:

This series of products can be used for high current mutual plug and accessory use,

railway or mining, battery connection, lithium battery and charging head.

They are widely used in electric forklifts, high current places and various DC

equipments.

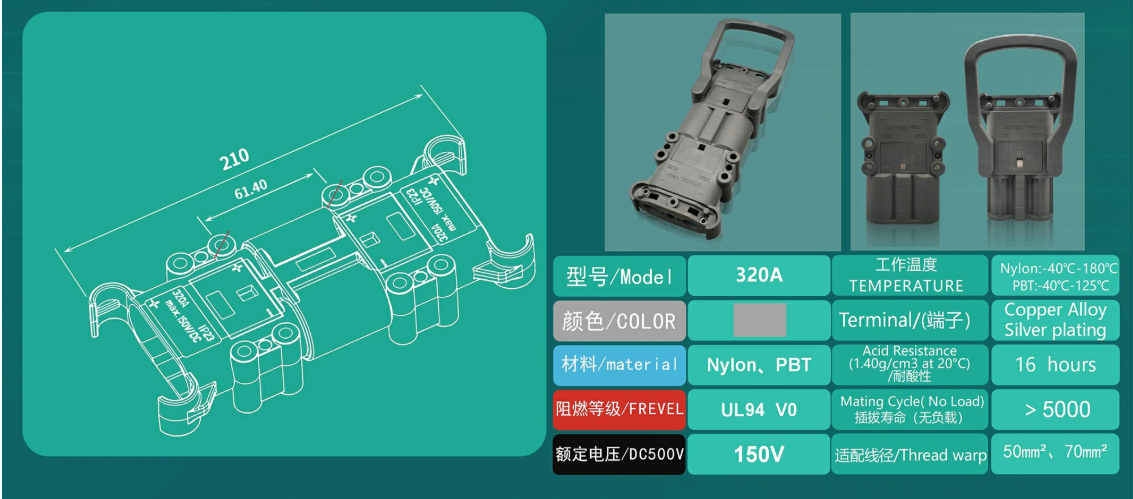

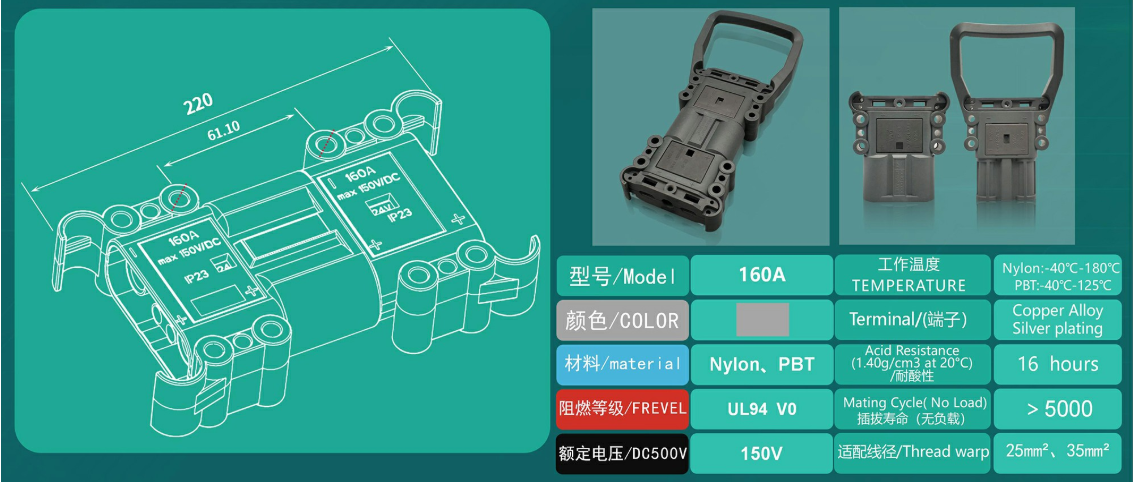

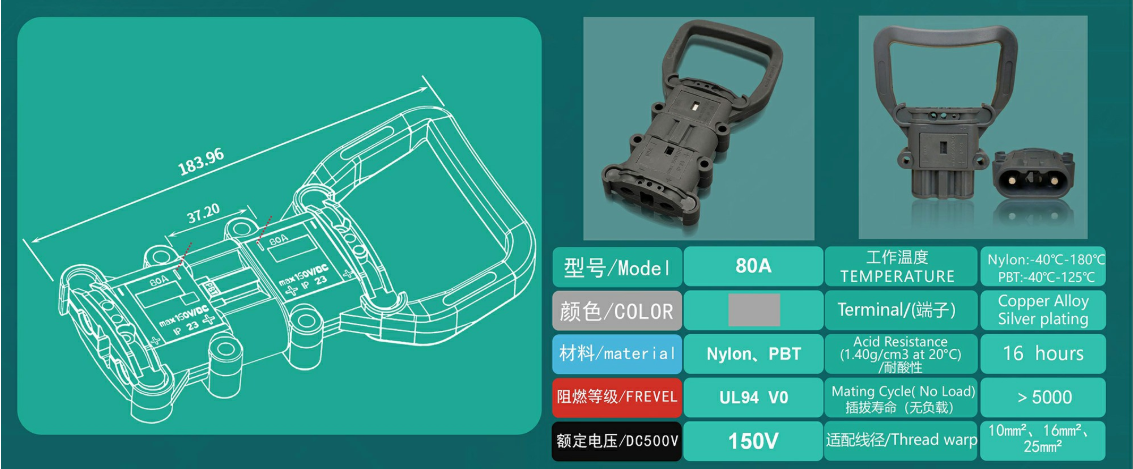

Specifications:

Housing color can be customized with 1000pcs MOQ:
