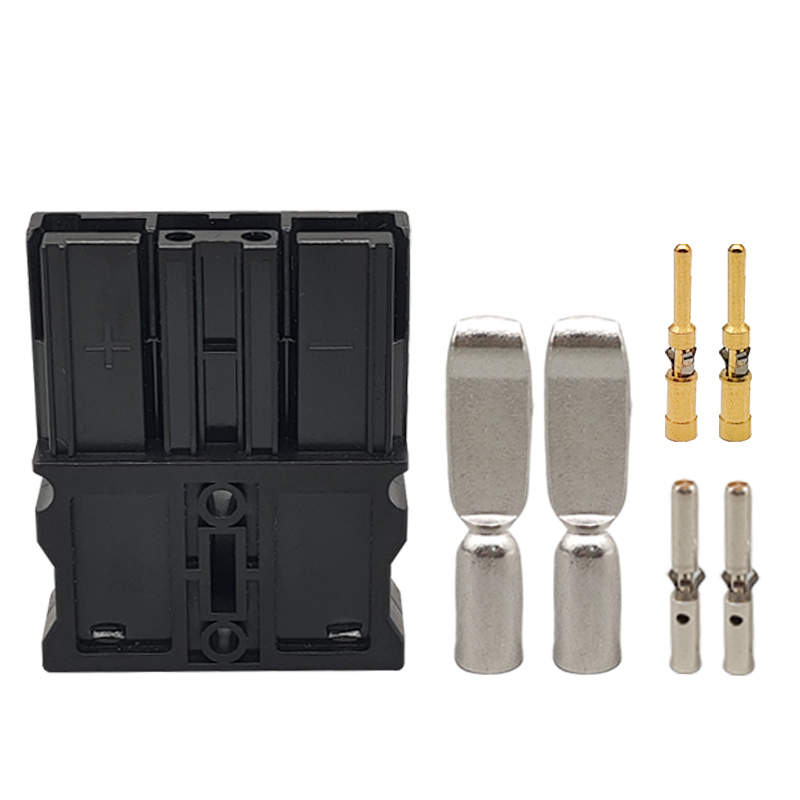

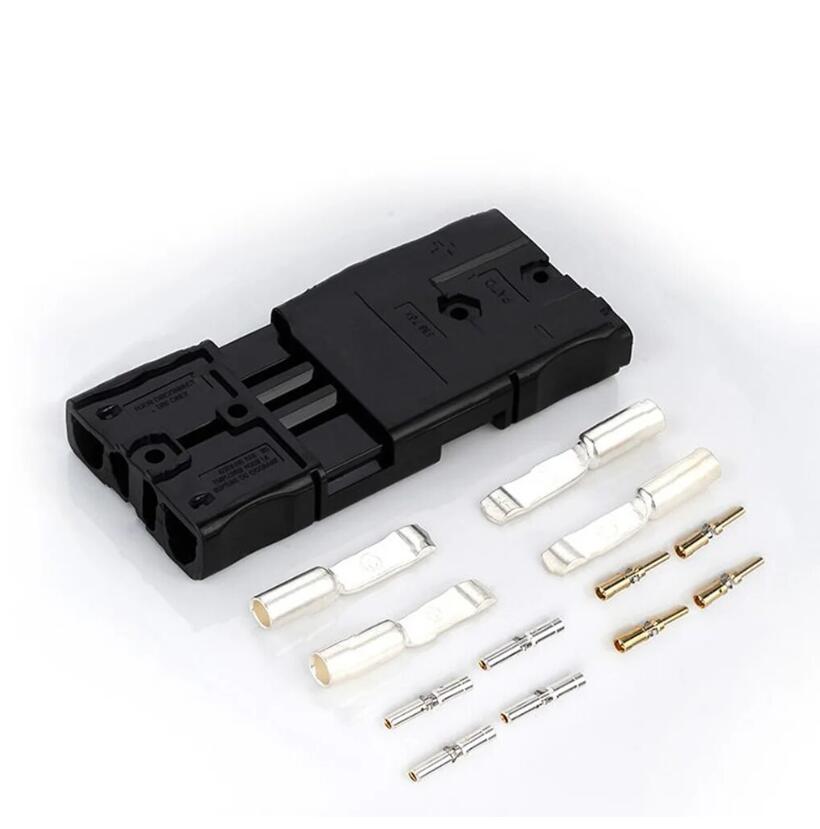

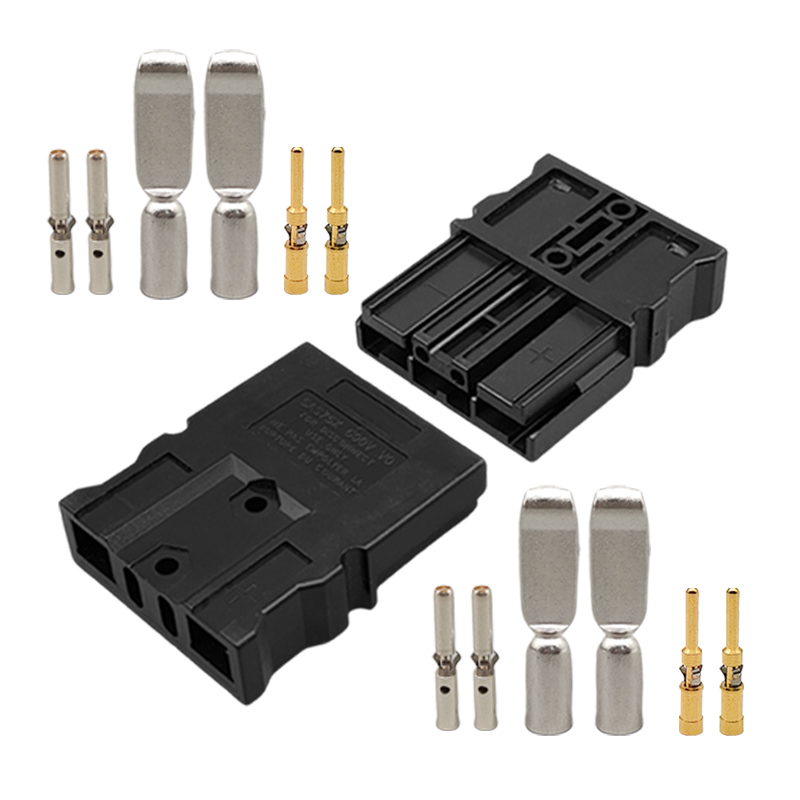

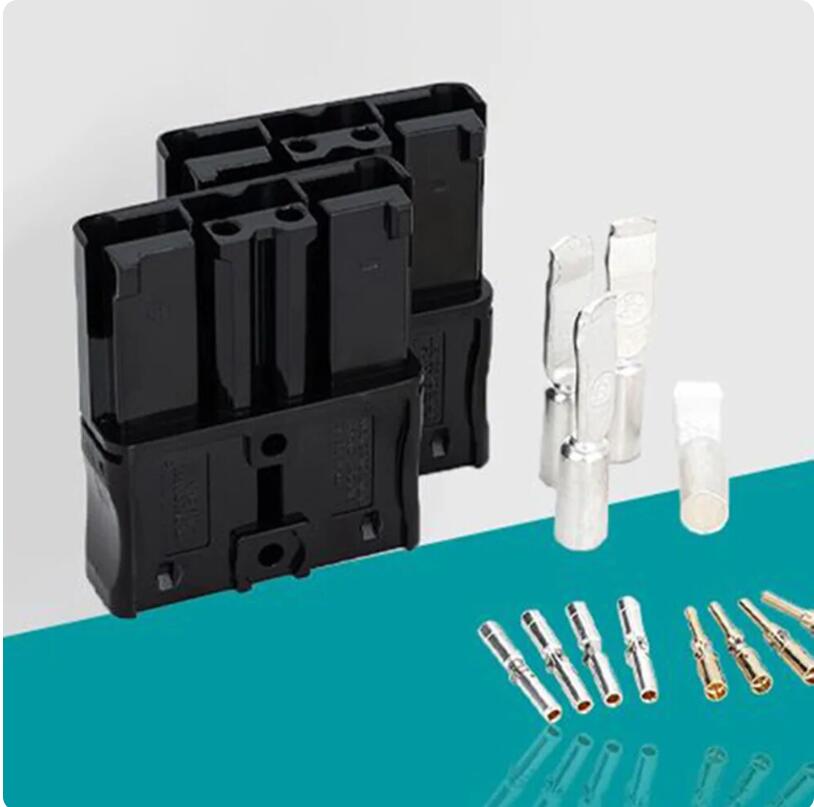

SBS75X 2pin power connector

Model Number    SBS75X

Interface Type    AC/DC

Material         Copper silver-plated terminals

Contact Termination     The copper is plated with silver

Mounting Type    Crimp or weld

Connector Usage   Quick charging connection

Number of Positions/Contacts    2pcs main contacts and 4pcs auxiliary pins

Shell Material       PC UL94V-0

Current Rating (Amps)     75AMP

Voltage Rating     600V

Name   Power Connector

Housing material    PC

Product features:

Portable& easy to use: The bipolar plug is small in size and light in weight, easyto carry and store, convenient for you to use.

Reliablequality: The bipolar plugs are made of high-quality aluminum alloy material,which is durable and not easy to break.

Fastcharging speed: The bipolar plug is designed with a quick charging speed, whichcan be charged quickly and easily.

Application field: large equipment places such as transportationrailway/electric forklift sightseeing car/storage forklift
